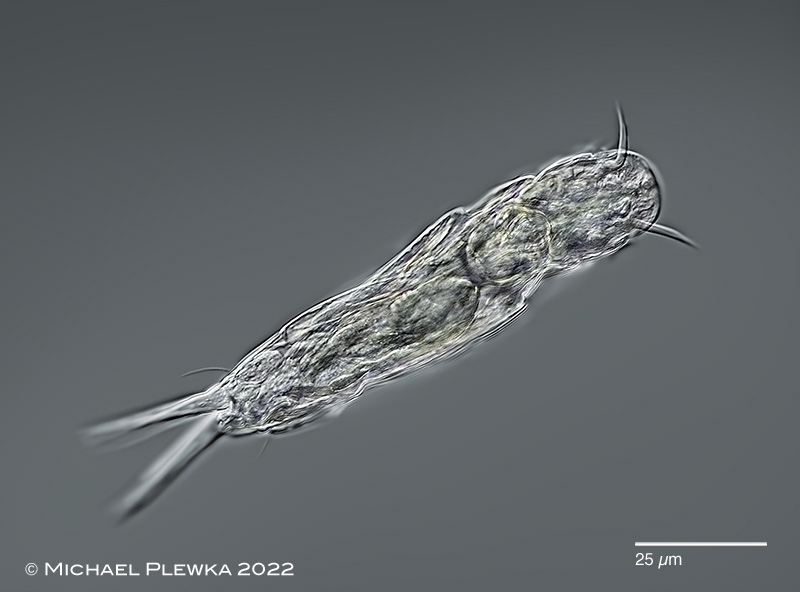

| Encentrum uncinatum; swimming, lateral view. A species with long toes (total length vs toe length ≈ 2-4. Also visible is one of the caudal antennas. (arrowhead).(7) |
| |
 |
| Encentrum uncinatum; another specimen, swimming, dorsoventral view. Focus plane on the two long cirri at the head. (4) |
| |
 |
| Encentrum uncinatum; another specimen, swimming, dorsoventral view. (1) |
| |
 |

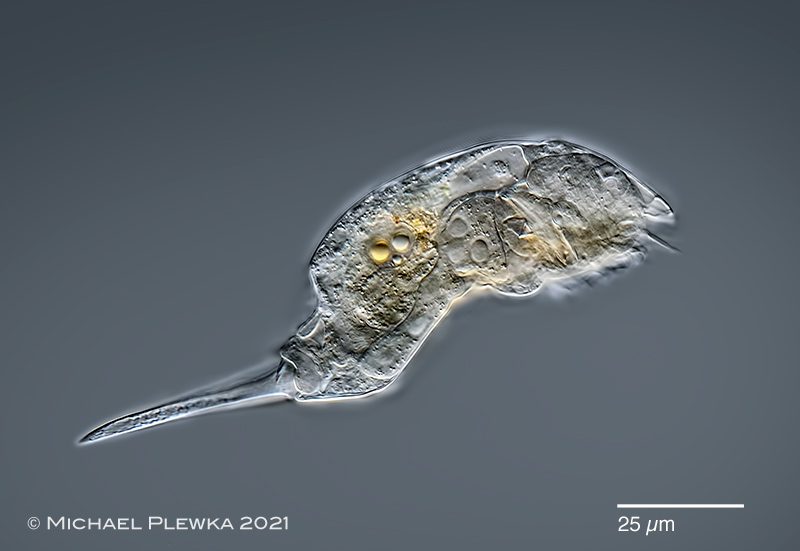

| Encentrum uncinatum; another specimen, swimming, lateral view. Sample from (3) |
| |
  |

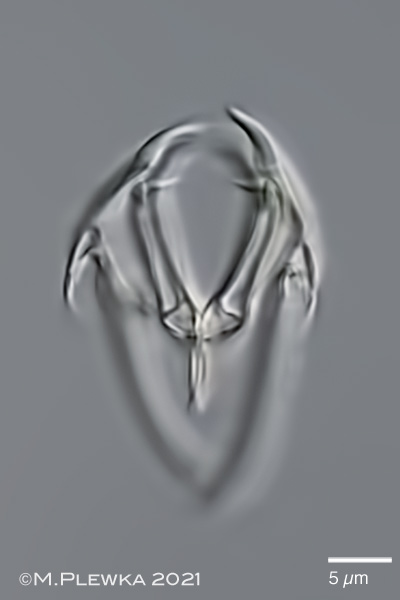

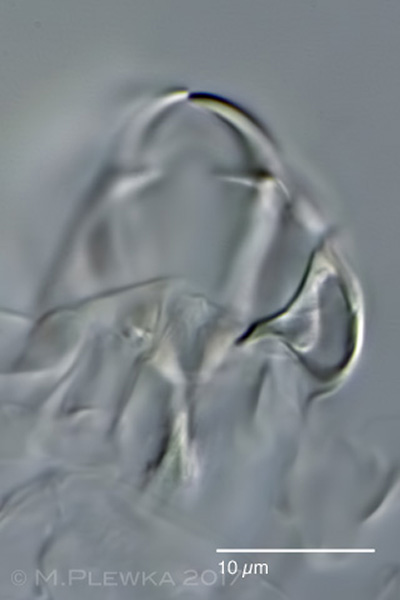

| Encentrum uncinatum; the forcipate trophi of this species have very conspicuous supramanubria as can be seen in these two images. left image: focus plane on the left supramanubrium; right image: right supramanubrium. (1) |
| |
 |
 |

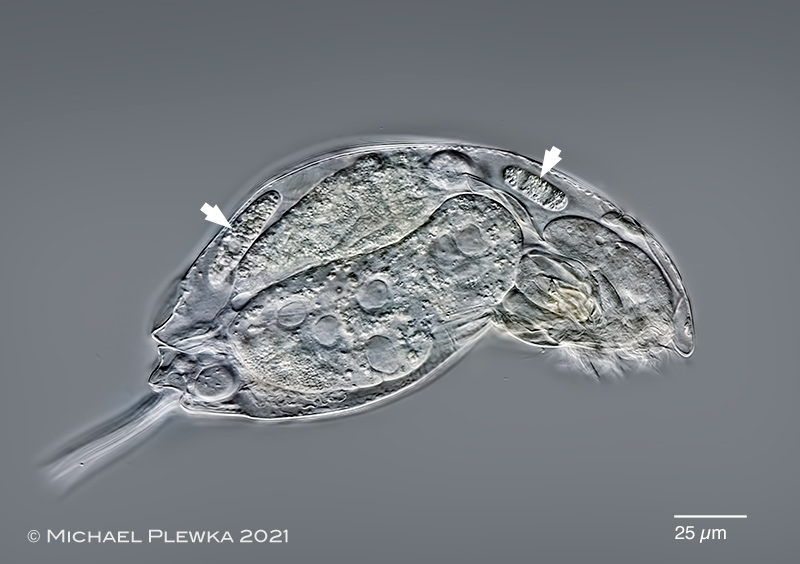

| Encentrum uncinatum; two images of two specimens with special features from sample (2). Upper image: the arrow points to a single birefringent body in the head region, which could not be observed in other specimens from the same sample. Lower image: the arrowheads point to two sausage-like bodies in the pseudocoel that were freely movable, presumable parasites. |
| |
 |
| Encentrum uncinatum; posterior part with foot and toes. The arrow points to a caudal antenna emerging from a sensory cell (SC). |
| |
  |
  |

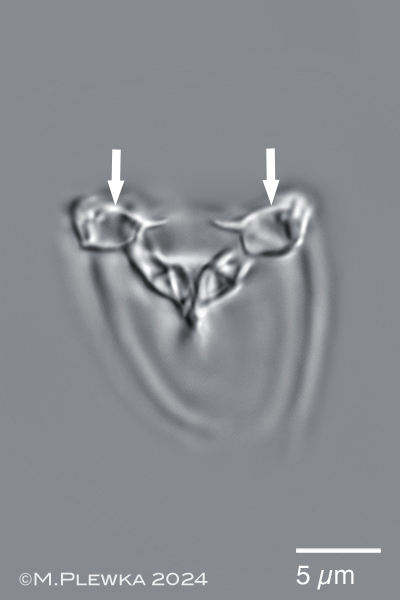

| Encentrum uncinatum; forcipate trophi, different focus planes. Left: he arrows mark the relative big and conspicuous supramanubria with needle-like tips which are characterisitc for this species Right: focal plane on the manubria . ( 6) |
| |
 |

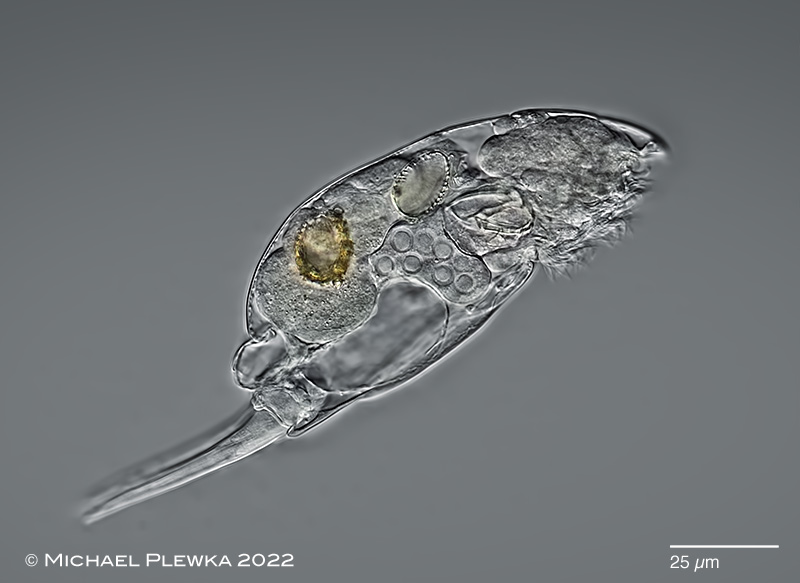

| Encentrum uncinatum; focal plane on some diatoms in the stomaach and the 8 nuclei in the germovitellarium. Specimen from (5) |
| |
 |

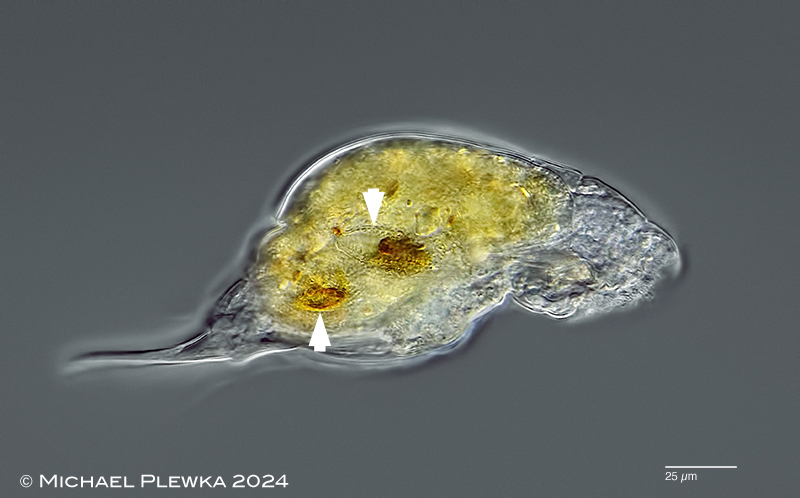

| Encentrum uncinatum; when observation started this specimen had 10 diatoms in the stomach. The arrowheads mark two of them. (6) |
| |
 |
| Encentrum uncinatum; specimen from (10) . |
| |
| Collection of sample (1) courtesy of F. Unterberg, aqua mountain travel |
| |
| |
|
|
| |
| |
|
|
| |
| |
|
|
| |
| |
|
Location (3): Hasslinghausen Bruchmühle, NRW, Germany; small pond of fallen tree |
 |
| |
| Habitat (3): detritus/ between algae |
| |
| Date (3): 24.04.2021 |
| |
|
|
|
|
|
| |
| |
|
|
| |
| |
| Location : Barentsøya, Svalbard (1); Hasslinghausen, NRW, Germany, bike path, puddle (2); Felderbachstrasse, Hattingen, EN, NRW, Germany, trench (6) |
| Habitat: moss (1); detritus (2);(6) |
| Date: coll. 08/2017; img: 09.10.2017 (1); 04.02.2021 (2); 21.06.2024 (6) |
| |
| |
| |
|
|
|
|
|
|
|
